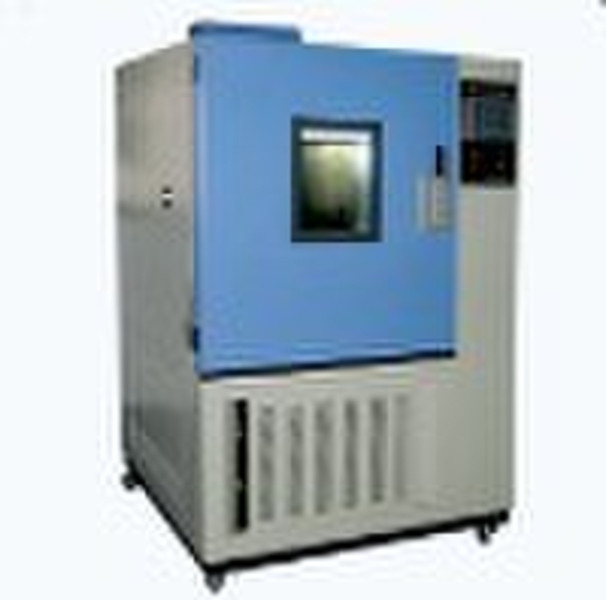

OZONE TESTER

OZONE TESTER provide an automatical controlled ozone concentration environment for determining the ozone resistance of rubber. After setting the required ozone concentration and temperature on the touch screen, the PLC control system will maintain the set values. The auto measuring system of UV rays offers the possibility to continuously and rapidly calibrate the ozone concentration under the change in variable flow. Part one:Machine Fetures 1.Structure feature Inside material:stainless steel Outside:A3 steel plate with paiting 2.Isulation material:Super micro glass fiber cotton. 3.Ozone range from 0-1000pphm can be adjusted at random 4.Adjustable speed motor (can meet the static method elevating test, testing working piece moving positions meet the theory of the line track 5.Ozone concentration automatical digital control device 6.Double light beam “QUA” Ultraviolet Detector 7.Atomatical digital measure device 8.Ozone concentration/ Tmperature-humidity set value PID control. 9.Safety lock control system 10.Ozone source: Ozone Generator(UV lamp) 11.Air meter can control the accuracy of different layers of the air 12.Equipment with air cleaner and thermostat settings 13.Activated charcoal absord and silicon dry tower 14.The air with ozone parallel with the working piece 15.Leave special interface for testing the density of Ozone 16.Inside equipment with voltage regulation power Part Two :Technical parameter Working room size 600*500*500mm/650×650×650mm/800×800×800mm Temp range RT+10°C -90°C Floating range ≤±0.5°C Temp. Accuracy ≤2°C Ozone range 20-1000pphm adjustable Accuracy 10% China Natioonal Standard Air flow speed 12-16mm/s Rotating Plate Speed 0 50mm/s Dynamic elevating frequency 0.5Hz Test air flow 0-60L/min Safety protect Power overloading Loop overloading control Short circuit protection Safety earthing Motor overloading protection Over temp protection Alarm signal protection Standard JIS K 6259 ASTM1149 ISO1431 GB/T7762 GB/T13642 Static elevating testing working piece moving positions meet the theory GB/T7762-2003 Dynamic elevating testing working piece moving positions meet the theory GB/T7762-2003 Gurantee: One year’free of repairment and maintain for the all using time Certificate: SO9001:2000 system National Testing Center .No :CNAB020-Q
